self-tapping screws with Phillips pan heads are widely used fasteners designed to create their own mating threads as they are driven into a pre-drilled hole or, depending on the screw design and material, directly into a relatively thin substrate. They combine a pan-shaped head, a Phillips drive, and a thread-forming or thread-cutting screw point to provide a practical fastening solution for applications where conventional Machine Screws and nuts are not convenient.
Unlike standard machine screws, which normally require a pre-existing internal thread, self-tapping screws are designed to interact directly with the material during installation. This makes them useful in sheet metal fabrication, electrical equipment, appliances, furniture, automotive components, plastic assemblies, and general industrial manufacturing.
Understanding their working principle, manufacturing process, materials, advantages, limitations, and applications can help engineers and purchasing teams select the right screw for a specific assembly.
How Do Phillips Pan Head Self-Tapping Screws Work?
The basic working principle of a Phillips pan head self-tapping screw is relatively simple. During installation, the screw is rotated by a compatible Phillips screwdriver or power driver. As the screw advances into the workpiece, its specially designed threads engage with the surrounding material and create or form a mating thread.
The exact mechanism depends on the screw point and thread geometry.
Some screws use a thread-forming design, which displaces material around the hole to create the internal thread. These screws are often suitable for softer metals and certain plastics because they form the thread without removing a large amount of material.
Other designs use a thread-cutting point, which removes material as the screw enters the workpiece. Cutting-style screws can be useful when fastening into harder materials or when a more defined internal thread is required.
The Phillips drive allows the installation tool to transfer rotational torque to the fastener. The cross-shaped recess is widely recognized and can be used with manual screwdrivers, electric screwdrivers, and automated assembly equipment.
The pan head provides a relatively broad bearing surface while maintaining a low-profile, rounded appearance. When properly tightened, the head sits against the surface of the material and distributes the clamping force around the fastening area.
What Is the Manufacturing Process?
The performance of a screw depends heavily on its manufacturing process. Although production methods can vary according to screw size, material, thread specification, and application, industrial production commonly involves several stages.
1. Wire Preparation
Production normally begins with steel or another suitable metal supplied in wire form. The raw material is selected according to the required mechanical properties, hardness, corrosion resistance, and surface treatment.
The wire may be cleaned, straightened, and cut into suitable lengths before heading.
2. Cold Heading
The cut wire blanks are processed using a cold heading machine. During this process, pressure is applied to form the basic screw head and shank.
For a pan head screw, the tooling is designed to produce the characteristic rounded head shape and the appropriate head diameter and height. Cold heading provides high production efficiency and good dimensional consistency, making it suitable for large-volume Fastener Manufacturing.
3. Phillips Recess Formation
After the basic head shape is formed, the Phillips recess is created using precision tooling.
The recess must have appropriate dimensions and geometry so that the screwdriver bit can engage correctly. Poorly formed recesses may increase the risk of cam-out, where the driver slips out of the recess during installation.
4. Thread Rolling or Thread Forming
The screw blank is then processed to create the external thread. In many industrial applications, thread rolling is preferred because the thread is formed by displacing material rather than cutting it away.
Thread rolling can produce consistent thread geometry and improve the strength of the thread profile. Depending on the screw design, the tip may also be shaped to provide the required self-tapping function.
5. Heat Treatment
Heat treatment may be applied when higher hardness and mechanical strength are required.
For carbon steel screws, processes such as quenching and tempering can be used to achieve the desired combination of hardness, tensile strength, and toughness. The specific treatment depends on the material grade and product requirements.
6. Surface Treatment
The final surface treatment depends on the intended environment.
Common options include zinc plating, Zinc-Nickel Coating, black oxide, phosphate coating, or other protective finishes. Surface treatment can improve corrosion resistance, appearance, friction characteristics, and compatibility with the application.
For demanding industrial environments, the choice of coating should be considered together with the base material and expected exposure conditions.
What Materials Are Used?
Material selection is an important part of screw design because the fastener needs to provide sufficient strength while also interacting correctly with the material being fastened.
Carbon Steel
Carbon steel is one of the most common choices for industrial self-tapping screws. It provides a good combination of strength, hardness, machinability, and cost efficiency.
Depending on the grade and heat treatment, carbon steel screws can be manufactured for applications requiring different levels of mechanical performance.
Stainless Steel
Stainless steel is often selected when corrosion resistance is a major consideration. Stainless steel Phillips pan head screws are commonly used in equipment, electrical products, appliances, outdoor assemblies, and other environments where moisture or corrosive exposure may occur.
Common stainless steel grades include 304 and 316, although the appropriate grade depends on the application and environmental conditions.
Alloy Steel
Alloy steel may be considered for applications requiring higher mechanical performance. Alloying elements and heat treatment can improve strength, hardness, and wear resistance.
However, material selection should not focus only on strength. The screw must also have suitable compatibility with the substrate and installation method.
Advantages of Phillips Pan Head Self-Tapping Screws
One of the main advantages of this screw design is its simple installation process. Because the screw can create its own mating thread, the assembly may not require a separate nut or pre-threaded component.
Another advantage is versatility. These screws can be manufactured in different diameters, lengths, thread profiles, point styles, materials, and coatings, allowing manufacturers to select a configuration for different substrates and operating conditions.
The pan head also provides a relatively large contact area compared with some smaller head styles. This can help distribute the clamping load over the surrounding surface.
The Phillips recess is another practical feature. Phillips drivers are widely available, and the drive system can be integrated into manual and powered assembly processes.
For high-volume production, the combination of standardized dimensions and automated installation can help simplify assembly operations.
What Are the Limitations?
Despite their advantages, Phillips pan head self-tapping screws are not suitable for every application.
One limitation is the possibility of cam-out during installation. If excessive torque is applied or the screwdriver bit does not properly match the recess, the bit may slip out and damage the drive.
Another consideration is thread engagement. The screw must have sufficient engagement with the substrate to achieve the required holding force. If the workpiece is too thin, too soft, or improperly prepared, the connection may not provide adequate strength.
Installation torque is also important. Excessive torque can strip the internal thread, deform the substrate, or damage the screw head. Insufficient torque, on the other hand, may result in inadequate clamping force.
For critical assemblies, engineers should therefore consider screw diameter, thread pitch, engagement length, substrate thickness, material hardness, and installation torque rather than selecting a screw based only on its nominal size.

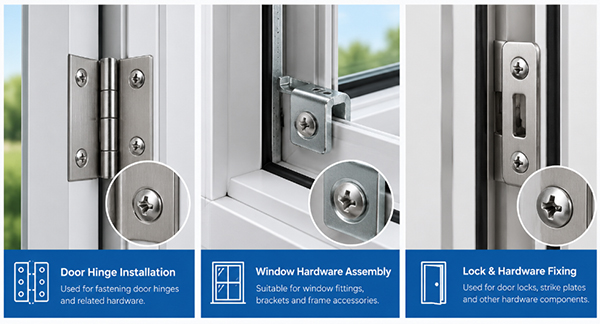

Common Applications
Phillips pan head self-tapping screws are used across many manufacturing industries.
In sheet metal fabrication, they can be used to join metal panels, brackets, enclosures, covers, and other components. Their ability to create threads during installation makes them particularly convenient for thin metal assemblies.
In electrical and electronic equipment, these screws may be used to secure housings, mounting brackets, terminals, and internal components.
In appliances, they can be used for securing metal panels and structural components. Their relatively compact head design also works well in assemblies where the fastener needs to remain close to the surface.
In automotive manufacturing, self-tapping fasteners can be found in interior components, brackets, plastic parts, trim assemblies, and other non-critical fastening locations.
They are also frequently used in furniture hardware, HVAC equipment, machinery housings, and general industrial assemblies.
When selecting sheet metal screws, engineers should consider not only the screw size but also the substrate material, thickness, thread design, head style, drive type, and corrosion requirements.
How to Choose the Right Screw?
Selecting the correct screw starts with identifying the material being fastened. A screw designed for thin sheet metal may not provide the same performance when installed into a hard metal component or a plastic assembly.
The next factors are diameter and length. The screw should provide enough thread engagement without penetrating too far into the assembly.
The screw point and thread geometry should also match the application. Thread-forming screws, thread-cutting screws, and other self-tapping designs have different performance characteristics.
Head and drive selection is another consideration. A Phillips pan head screw is a practical option when a rounded head and conventional cross recess are preferred. If automated assembly, higher torque transmission, or resistance to cam-out is particularly important, another drive style may be more suitable.
Finally, the surface finish should be selected according to the working environment. Indoor applications may require a different coating from outdoor, humid, or corrosive environments.
Working With a Self-Tapping Screw Manufacturer
For industrial purchasing, working directly with an experienced self-tapping screw manufacturer can make it easier to control dimensions, material grades, surface treatments, and production requirements.
A manufacturer can typically evaluate factors such as substrate material, screw diameter, length, thread specification, head dimensions, drive type, point configuration, coating, and mechanical requirements before recommending a suitable fastener.
For custom applications, drawings or samples can also be used to develop a screw according to the requirements of the final assembly.
Conclusion
Phillips pan head self-tapping screws combine three important features: a rounded pan head, a Phillips drive, and a self-tapping thread design. Together, these features provide a convenient fastening method for many metal, plastic, and industrial assemblies.
Their ability to create or form mating threads during installation can simplify assembly and reduce the need for separate threaded components. At the same time, factors such as material selection, thread engagement, installation torque, substrate thickness, surface treatment, and drive performance all influence the final fastening result.
For manufacturers and purchasing teams, choosing the right screw should therefore be based on the complete application rather than size alone. Understanding the screw's working principle, manufacturing process, material, advantages, limitations, and application environment can help achieve a more reliable and efficient fastening solution.
